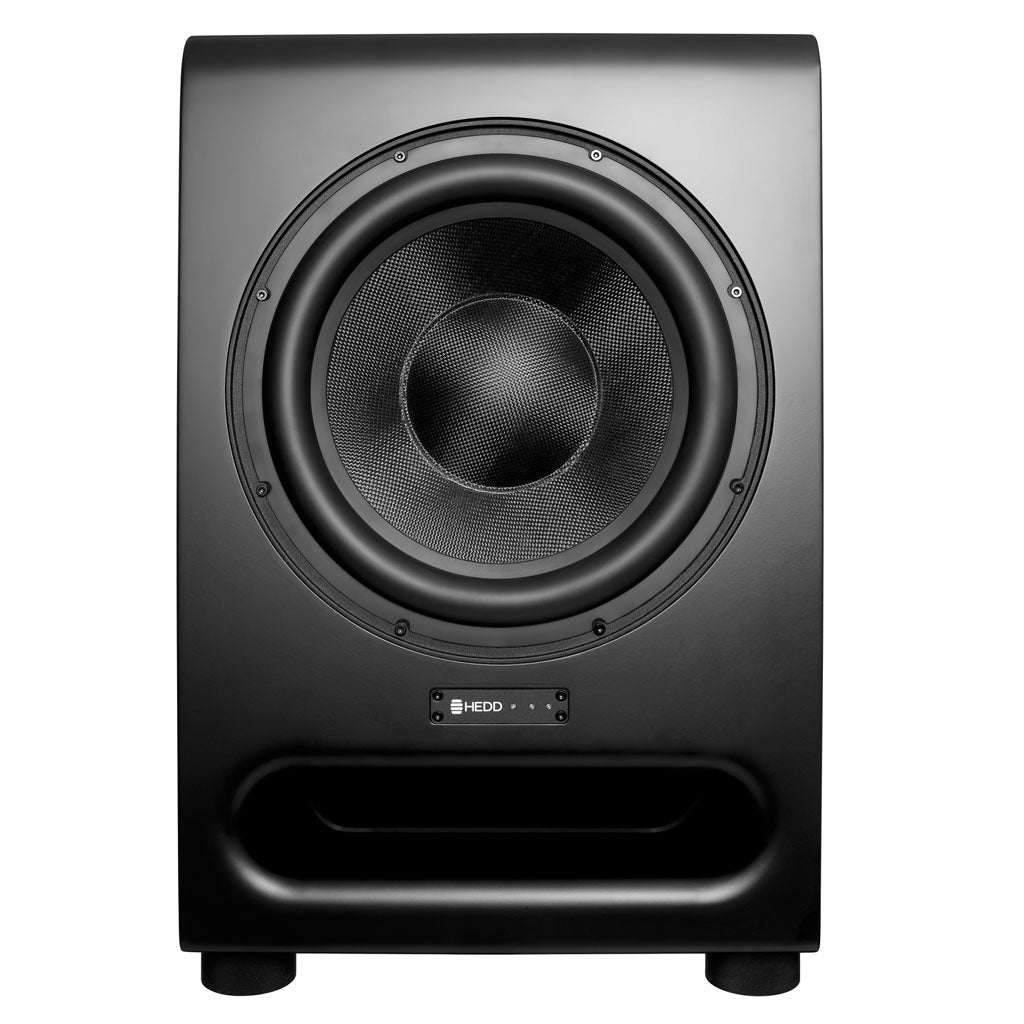

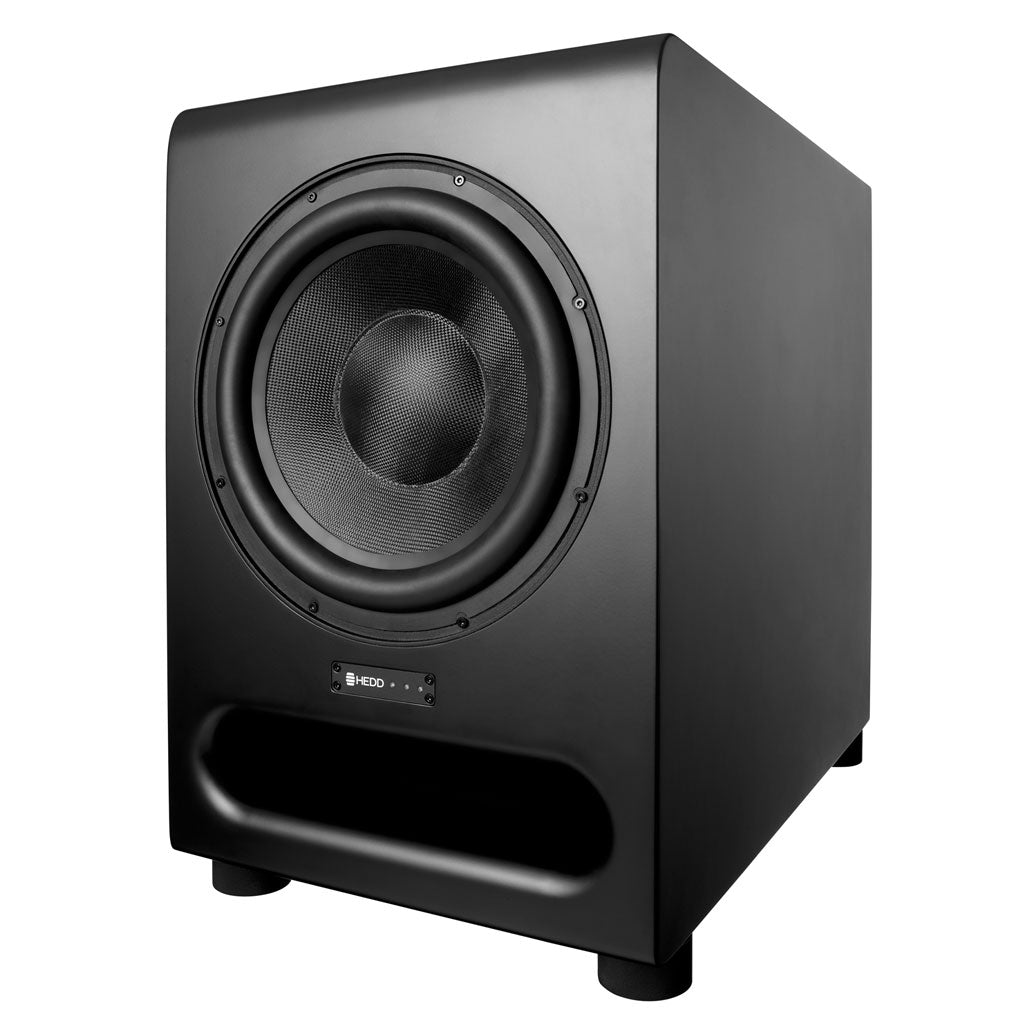

BASS 12 - 12" Subwoofer with DSP and 700W ICE Power amplification
BASS 12, earth shaking top of the line subwoofer with DSP
Very likely the biggest 12" subwoofer on the market, BASS 12 performs best when combined with HEDD's 3-way-systems TYPE 20 MK2 and TYPE 30 MK2. It lets you feel so much more of your music, adding weight and club atmosphere when you are mixing or simply try to impress your clients. It takes your audio all the way down to 20Hz, unless you are brave enough to to engage the Bass Extension mode (then we are talking 16Hz).
What makes this 700W subwoofer really special and truly unique is its capability to play along in a fully phase linear Satellite-Subwoofer system. Connected to a pair of HEDD MK2 monitors, it is possible to enable your set up to perform in complete linear phase - the result is a truly fascinating audio experience as you get both, the body of a big subwoofer and precision of a razor sharp monitoring system.
There is more: For an example the Satellite OFFSET control that assists you when compensating for potential sound problems resulting from the positioning between monitors and subwoofer (it lets you add or subtract ± 2 m depending on your chosen placement). And it goes without saying that we also included a variety of crossover filters (incl. Home Cinema adaptable LFE).
The BASS 12 can be connected via Analog and Digital AES connections.
By bringing our renown HEDD Lineariser® technology to the world of subwoofers, we are enabling you to use a fully phase-linear subwoofer-satellite system.
Closed or Ported
HEDD subwoofers make use of large bass ports that enable them to create the powerful dynamic sound you would expect from an active subwoofer. However, by pushing a set of custom plugs into the ports (plus switching to another DSP setting), you can turn them into a completely different beast, increasing precision and control.
Group Delay Compensation
The Lineariser® technology is a crucial part of our BASS subwoofers. It allows for phase correction which can by addressed on both the subwoofer and monitor level. In addition to that, we solved group delay problems by developing our GDC tool. The result is jaw dropping accuracy for a subwoofer an overall integrated sound experience.
HEDD Lineariser®, CoP, GDC, LFE, var. phase and crossover
Custom high-resolution 96 kHz / 32 Bit AD / DA converter
12" Woofer (2,5" voice coil)
700 W ICEpower amplification (85-264 V)
20 Hz - 200 Hz (LFE: 16 Hz - 200 Hz)
115 dB SPL (sound pressure level) per unit at 1m
Analog (XLR / 22 kΩ) and Digital 2ch (AES / XLR)
Filtered Analog (XLR / 22 kΩ) and Digital AES pass-through
595 x 380 x 610 mm, 32.1 kg
