TYPE 05 MK2
TYPE 05 MK2
No-Compromise Compact Monitor with on-board Lineariser® and CoP
"Given HEDD’s heritage, it’s no surprise that I found the Type 05 MK2 monitors so satisfying for desktop audio."
Like its bigger siblings the TYPE 05 MK2 is powered by a powerful SHARC-DSP loaded with HEDD's latest innovation: The Lineariser prefects the stereo image and depth by perfecting the speaker phase. What is more, the two distinct CoP modes (Closed and Ported) let you choose between a clean and painstakingly accurate sound ("Closed") and the ability to run the speakers at significantly higher volumes while maintaining access to lower bass regions ("Open").
The entire MK2 range also boasts Desktop- and Shelving-filters to adapt the speakers to your studio space and a jaw-dropping Bass-Extension mode that lets you access even lower frequency areas. All controls have stepped aluminum pots, making speaker adjustments easy and repeatable.

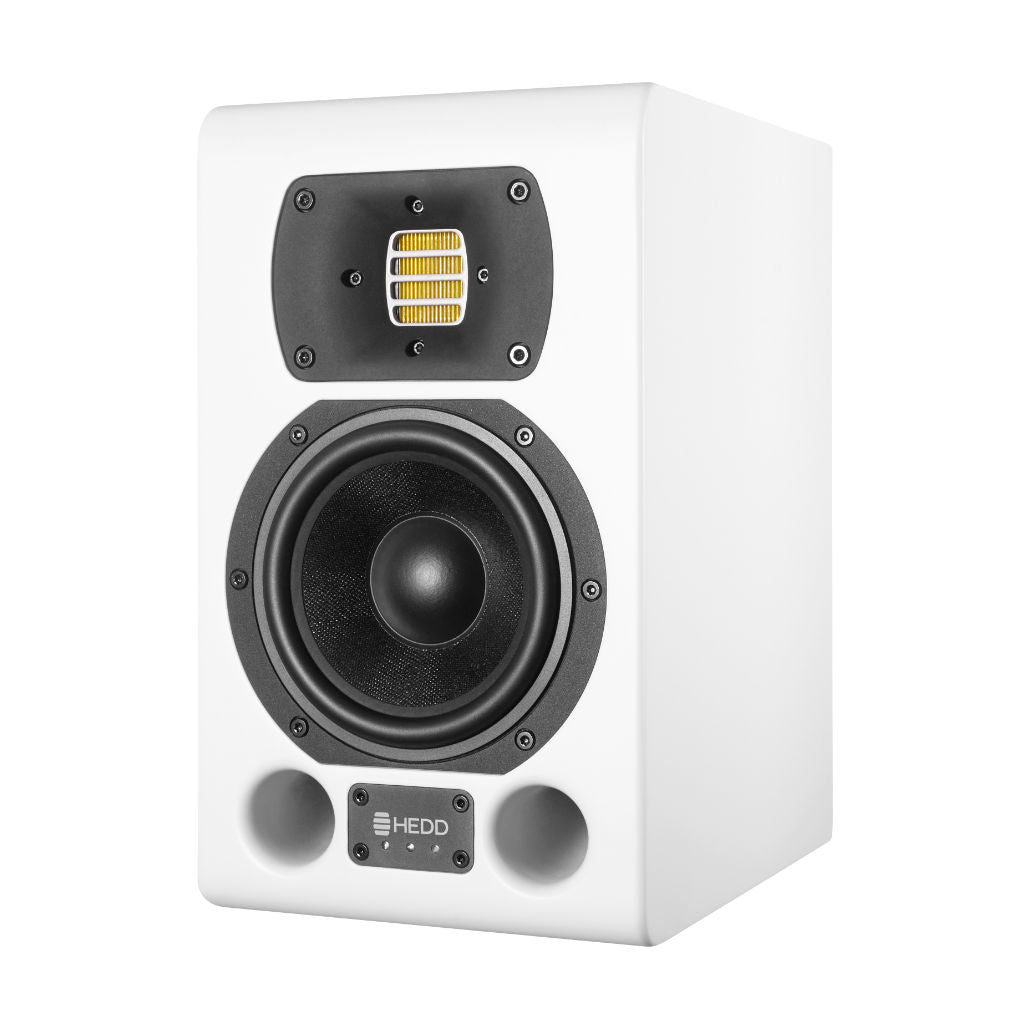

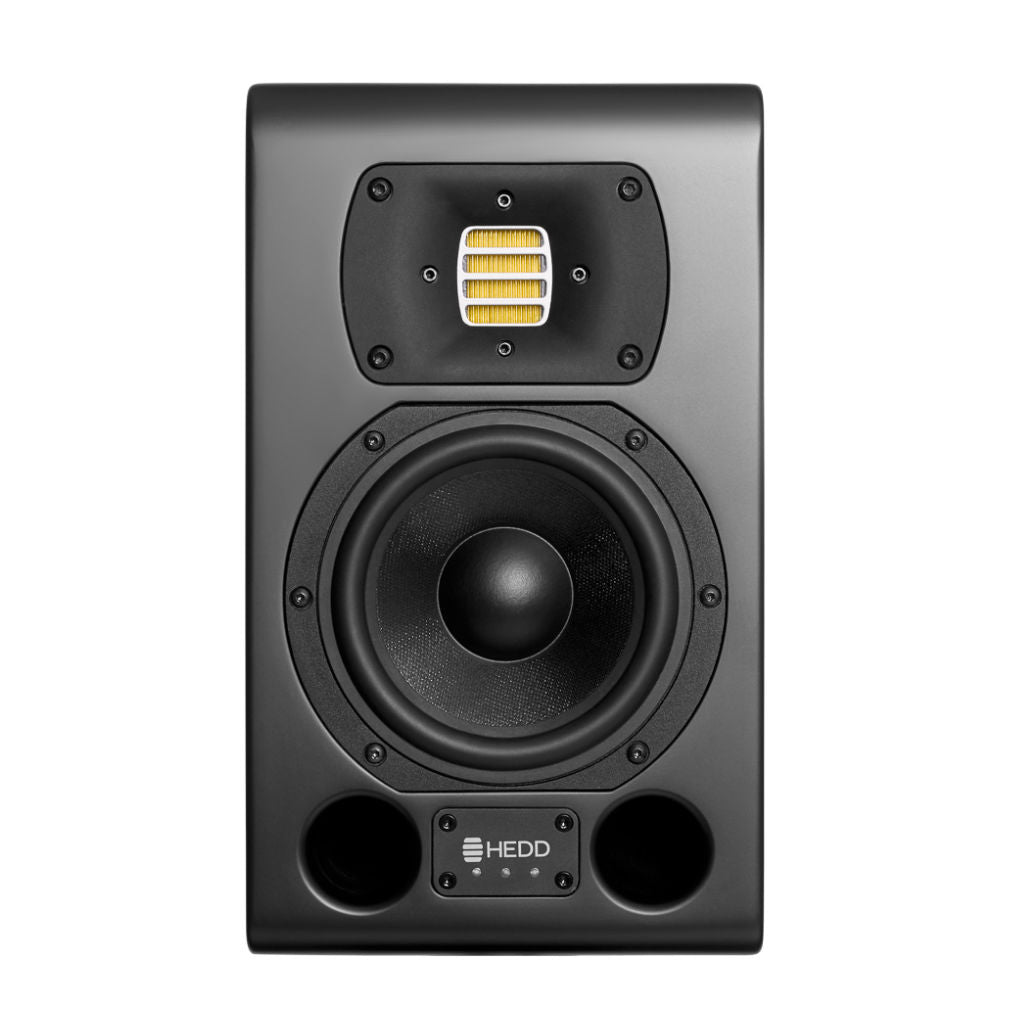

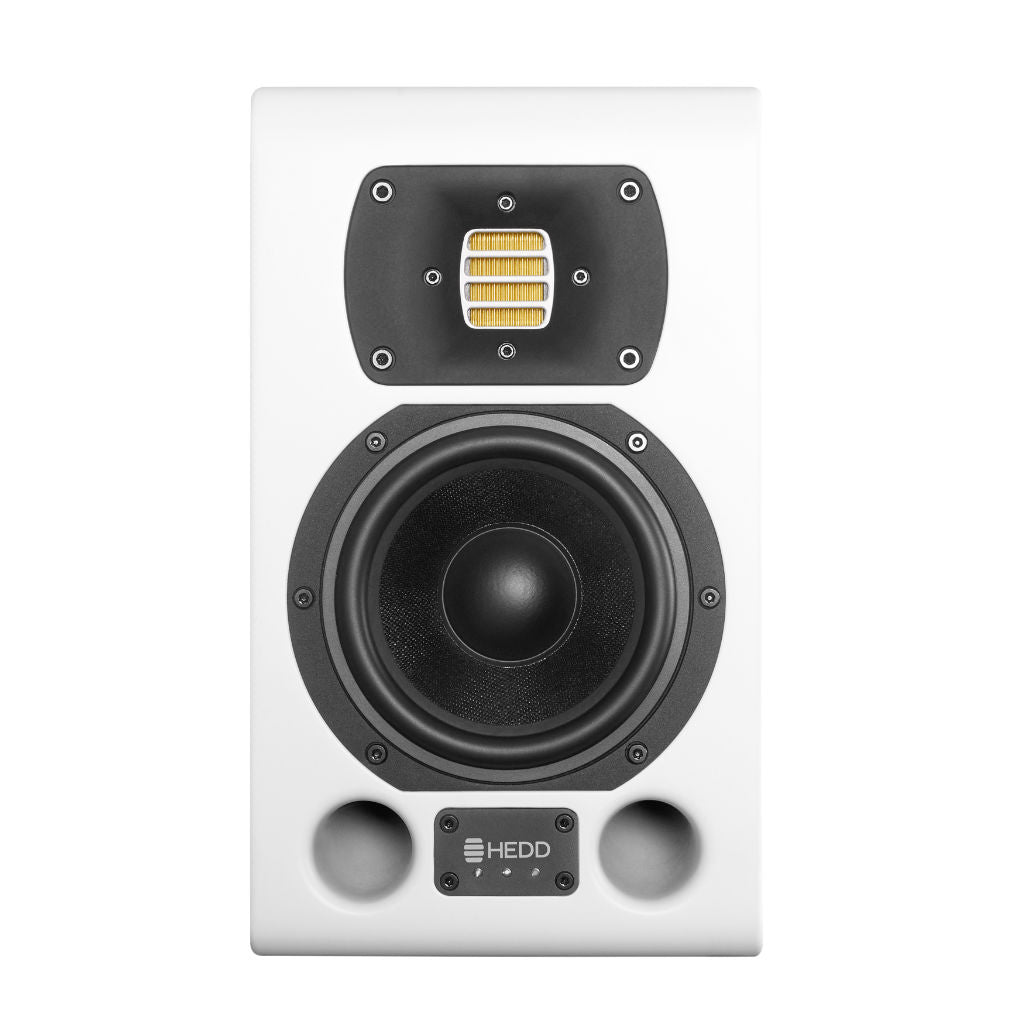

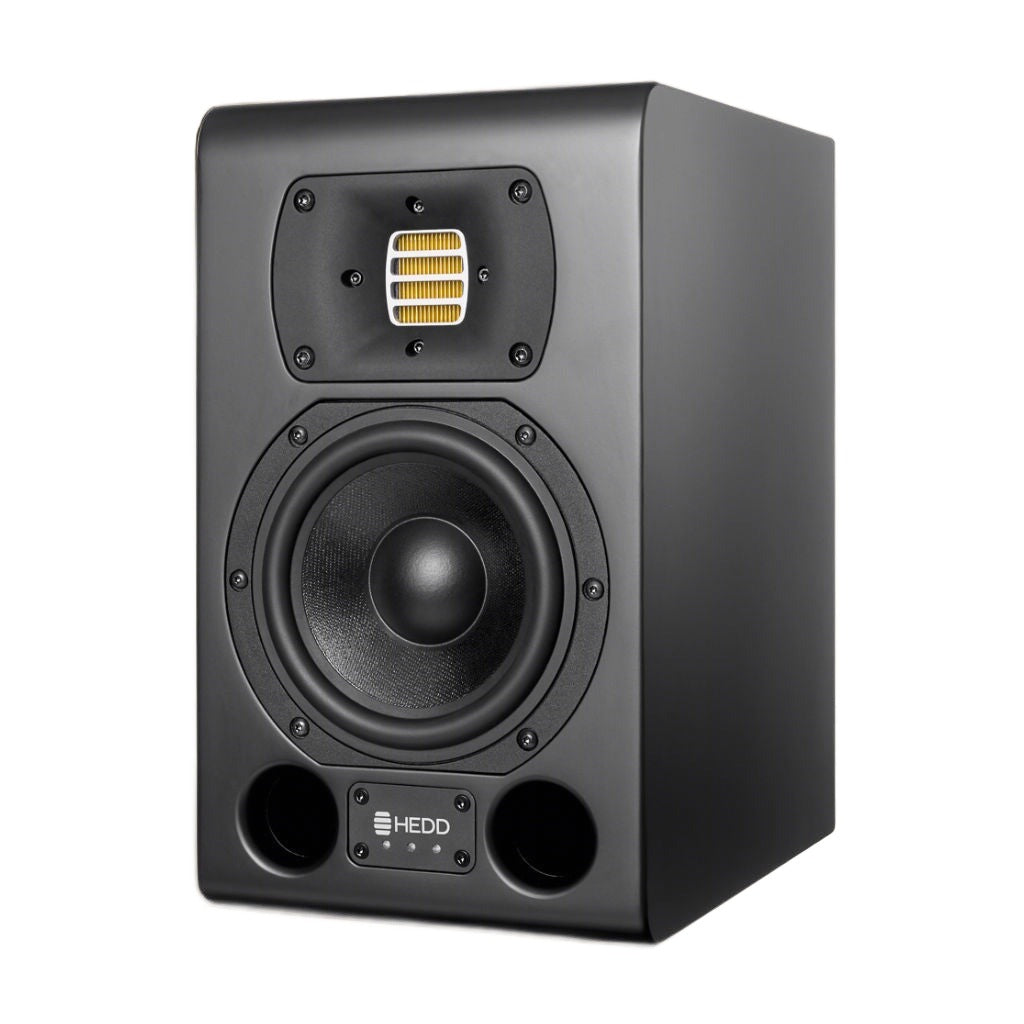

The TYPE 075 MK2 offers analog XLR and a digital AES connection. It is available in black and white.
Case studies
HEDD Air Motion Transformer
Our AMT was designed to deliver impeccable transient response and ultra-high frequency extension. This unique driver is handmade in Berlin to ensure the highest quality possible.
Our design of the Air Motion Transformer is known for transparent and linear high frequencies that do not distort the natural sound reproduction in any way.
HEDD Lineariser®
Our HEDD Lineariser® is fully integrated into the HEDD Type 05 MK2 monitors. With the phase linearity enabled we can solve time-related delays with a non-perceivable short reaction of 10ms. Effectively, this improves transients and imaging precision. For the first time, the phase correction can be synched with our HEDD BASS subwoofer range to compensate for group delay in a sat-sub system. Of course, the HEDD Lineariser® is optional and can be disengaged.
CoP: Closed or Ported
Like most monitors, the Type 05 MK2 speakers are based on a Ported base system that allows for a voluminous bass response with impressive extension. However, the same speakers can transform into a functionally new design with the flip of a switch and the use of the included plugs. The newly introduced Closed operation mode benefits from the extensive research that went into our reference monitoring system, the HEDD Tower Mains. With sealed bass ports, the Type 05 MK2 exceed expectations of bass precision and offers a new level of texture details and low-end harmonics.
-
Media Total
-
Pa Salieu
-
Fresh Phylix
-
Phable
Specifications
HEDD Lineariser®, CoP, GDC, LFE, Desk and Shelf Filters
Custom high-resolution 96 kHz / 32 Bit AD / DA converter
2-Way: 5" Woofer (1,5" voice coil) + HEDD AMT Tweeter
2x100 W ICEpower amplification (85-264 V)
2.500 Hz
45 Hz - 40 kHz (LFE: 38 Hz - 40 kHz)
112 dB SPL (sound pressure level) per pair at 1m
Analog (XLR / 22 kΩ) and Digital 2ch (AES / XLR)
Digital AES pass-through via XLR
308 x 180 x 245 mm, 6.4 kg per unit
When I was engaging the Lineariser [on the TYPE 05 MK2] I immediately felt the clear frequency response and really deep sound stage. It is just awesome how much detail you now have!
